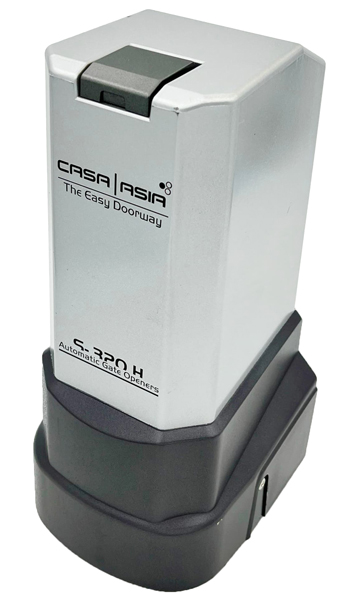

Casa Asia S-320H

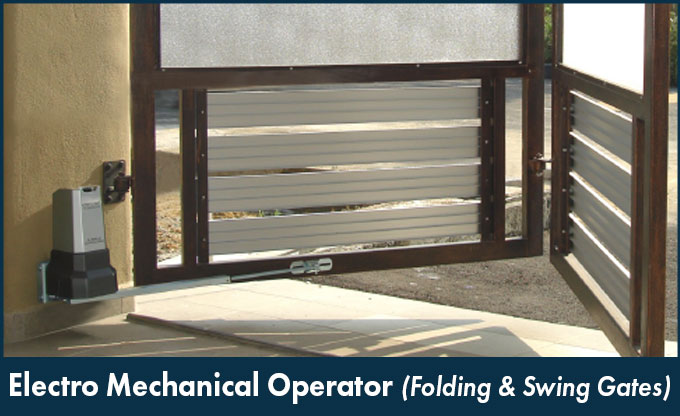

Reliable Automation for Swing & Folding Gates

Designed for durability and ease of use, Casa Asia S-320H is ideal for homeowners who want a quiet, smooth-operating gate system and for installers who need a reliable, hassle-free setup.

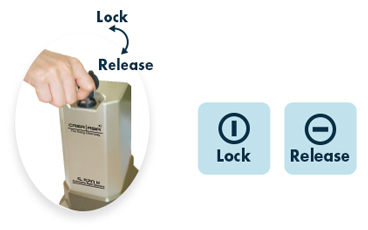

Release Lock for Gates:

Featuring the latest technology that integrates a safety locking system, the gate can be easily unlocked and moved freely during power outages.

Product Features

Discover the Value of Casa Asia S-320H

Whether you’re upgrading an existing gate or installing a new one, Casa Asia S-320H offers long-term performance with minimal maintenance.

Weatherproof
Designed to withstand heavy rains and sunlight.

Gate Buzzer Alert
3 types of buzzer sounds to differentiate gate status.

Backup Battery
Keeps your gate running smoothly during power outages.

Auto Close Timer
Automatically closes your gate after a preset time.

Safety Beam Sensor (*Optional)
Prevents gate from closing when obstacles are detected.

Memory Function
Creates a default setting for seamless future cycles.

Technical Specifications
Power Supply	230 V
Power Max	40W
Current Max	3 Ampere
Torque Max	190 Nm
Operating Voltage	DC13 V
Operating Power	20 W
Operating Current	1.36 Ampere
Operating Torque	96 Nm
Output Speed	2 RPM
Opening Time	10 Seconds (Total Open/Close)
Keypad Control	2 Wires Connection

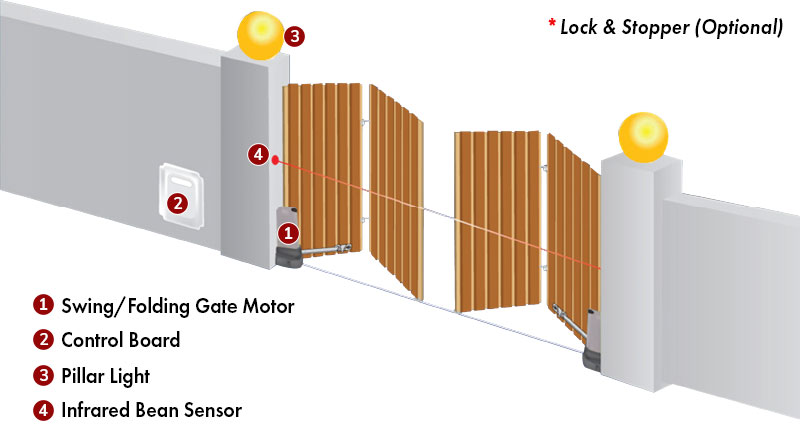

Installation Drawing

View the visual guide below for installers and technicians to ensure accurate setup and optimal performance.

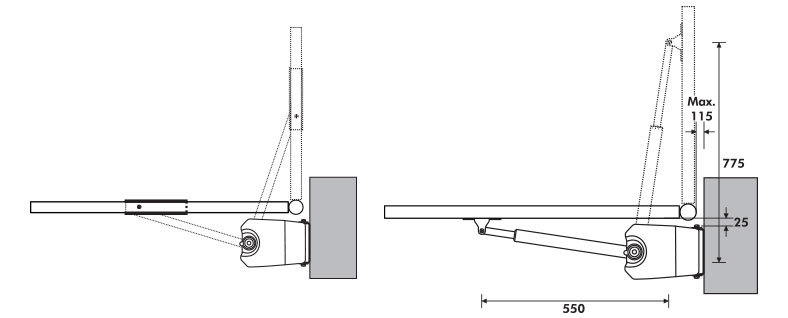

Dimension Guide to Construct (mm)

Product Brochure

Download the official brochure for specifications, features, and installation guidance.

CASA ASIA S-320H BROCHURE
