AEMAC (LOCK RELEASE & I-836)

Reliable and Versatile Automation for Every Gate

The AeMac series offers 2 advanced gate automation solutions, the Aeac with Lock Release and AeMac I-836, both providing superior performance, flexibility, and security for residential and commercial systems.

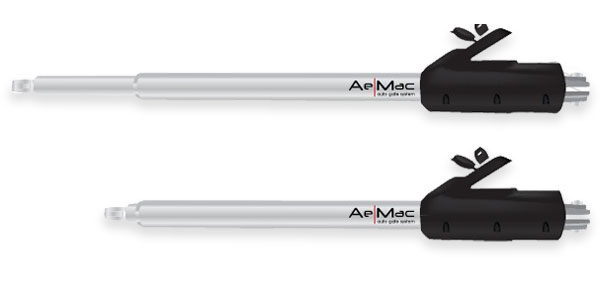

AEMAC WITH LOCK RELEASE

Efficient & Safe Automation for Your Gate

The AeMac with Lock Release combines cutting-edge technology with robust safety features to provide seamless and secure gate operation, even during power failures.

Product Features

Unlocking the Benefits of AeMac with Lock Release

AeMac with Lock Release ensures reliable, long-lasting performance, making it the ideal choice for both residential and commercial applications.

  • Electronic Anti-Crushing Sensor
    Automatically re-opens the gate if it detects an obstruction.
  • Backup Battery
    Keeps your gate running smoothly during power outages.
  • Micro-Computer Control
    Advanced fuzzy logic control for precise operation and performance.
  • Dual Speed Design
    With soft cushion stop for smooth operation and longevity of hardware.
  • Non-Underground Motor
    No risk of damage commonly associated with underground motors.
  • Soft Start/Soft Stop
    Commercial-grade durability to extend the lifespan of your gate system.
  • Electromechanical Operator
    Reliable, silent, and secure operation with self-locking functionality.
  • Double Safety Protection
    Includes an electronic overload sensor for added security and peace of mind.
  • For Gates up to 6.5 meters
    Allows for more opening space with a powerful design to handle larger gates.

AeMac (with Lock Realease) Technical Specifications
Driving Method Screw Driven Piston Type
Operating Voltage DC 16V for Normal Speed;
DC 12V for Cushioning Speed
Max Output Voltage 80W per Driver
Max Piston Stroke 30 cm
Max Piston Speed 3 cm/sec
Operating Cycle 10 Seconds per 90 (approx)
Max Gate Weight 250kg per Wing
Max Gate Length 2.2m per Wing
Backup Battery 12V 7Ah

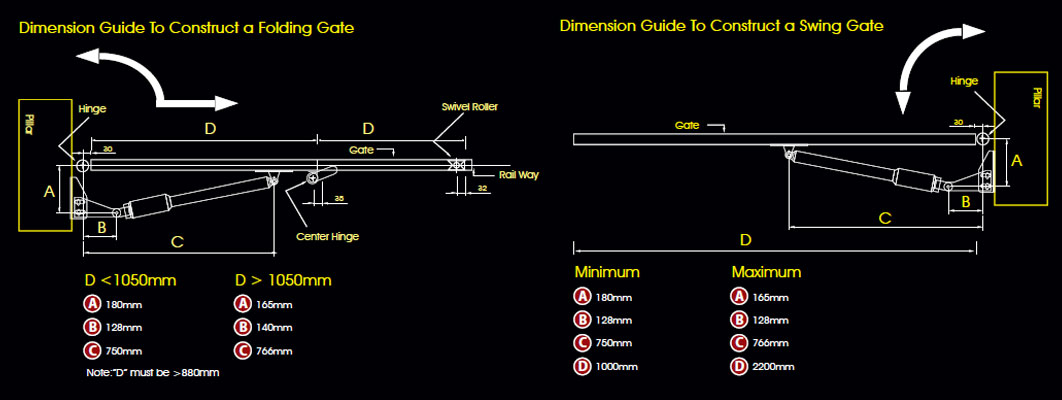

AeMac (with Lock Release) Installation Drawing

View the visual guide below for installers and technicians to ensure accurate setup and optimal performance.

Product Brochure

Download the official brochure for specifications, features, and installation guidance.

AEMAC (WITH LOCK RELEASE) BROCHURE

AEMAC I-836

Smart Motion Control for Safety & Convenience

The AeMac I-836 is designed for homeowners who value smooth automation, safety, and smart functionality, especially suited for swing and folding gates.

Product Features

Optimized Gate Control with AeMac I-836

With intelligent motion control, dual-speed design, and added safety systems, the I-836 is a powerful solution for modern gate automation.

  • Electronic Anti-Crushing Sensor
    Automatically re-opens the gate if it detects an obstruction.
  • Rechargeable Backup Battery
    Keeps your gate running smoothly during power outages.
  • Micro-Computer Control
    Advanced fuzzy logic control for precise operation and performance.
  • Non-Underground Motor
    No risk of damage commonly associated with underground motors..
  • Timer Control
    Automatically closes your gate after opening.
  • Dual Speed with Cushion Stop
    Smooth opening and closing to extend the life of your gate system.
  • System Lock Upgrade
    Secure your system with a long press of the close/open button.
  • DC 24V Low Voltage Tech
    Maximizes safety while maintaining powerful performance.
  • Versatile Compatibility
    Performs well with swing gates and folding gate setups.

AeMac I-836 Technical Specifications
Driving Method Screw Driven Piston Type
Operating Voltage DC 24V for Normal Speed & Cushioning Speed
Max Output Power 80W per Driver
Max Piston Stroke 30 cm
Max Piston Speed 3 cm/sec
Operating Cycle 10 Seconds per 90 (approx)
Max Gate Weight 250kg per Wing
Max Gate Length 2.2m per Wing
Backup Battery 12V 7Ah
Safety Barrier Infrared Beam Sensor (Optional)
Main Supply AC 110V / 220V;
60Hz / 50Hz

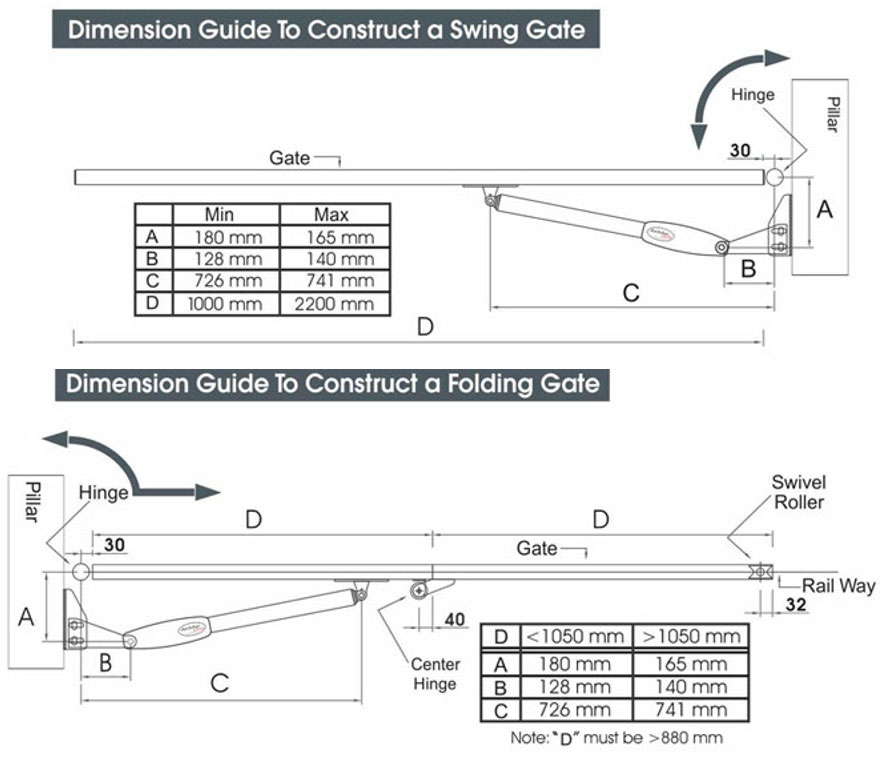

AeMac I-836 Installation Drawing

View the visual guide below for installers and technicians to ensure accurate setup and optimal performance.

Product Brochure

Download the official brochure for specifications, features, and installation guidance.

AEMAC I-836 BROCHURE

Secure Your Home with Superior Auto Gate Systems

Experience Casa Asia’s advanced gate automation technology for your security and convenience.
